Support Base big foot™, 4-Piece Set

Secure stand
With its large footprint of 200 x 180 mm with transverse ribs, AL-KO big foot™ prevents the supports from slipping off or sinking in. It ensures that your caravan stands securely. Max. load of the support leg: 1250 kg.

Compact design

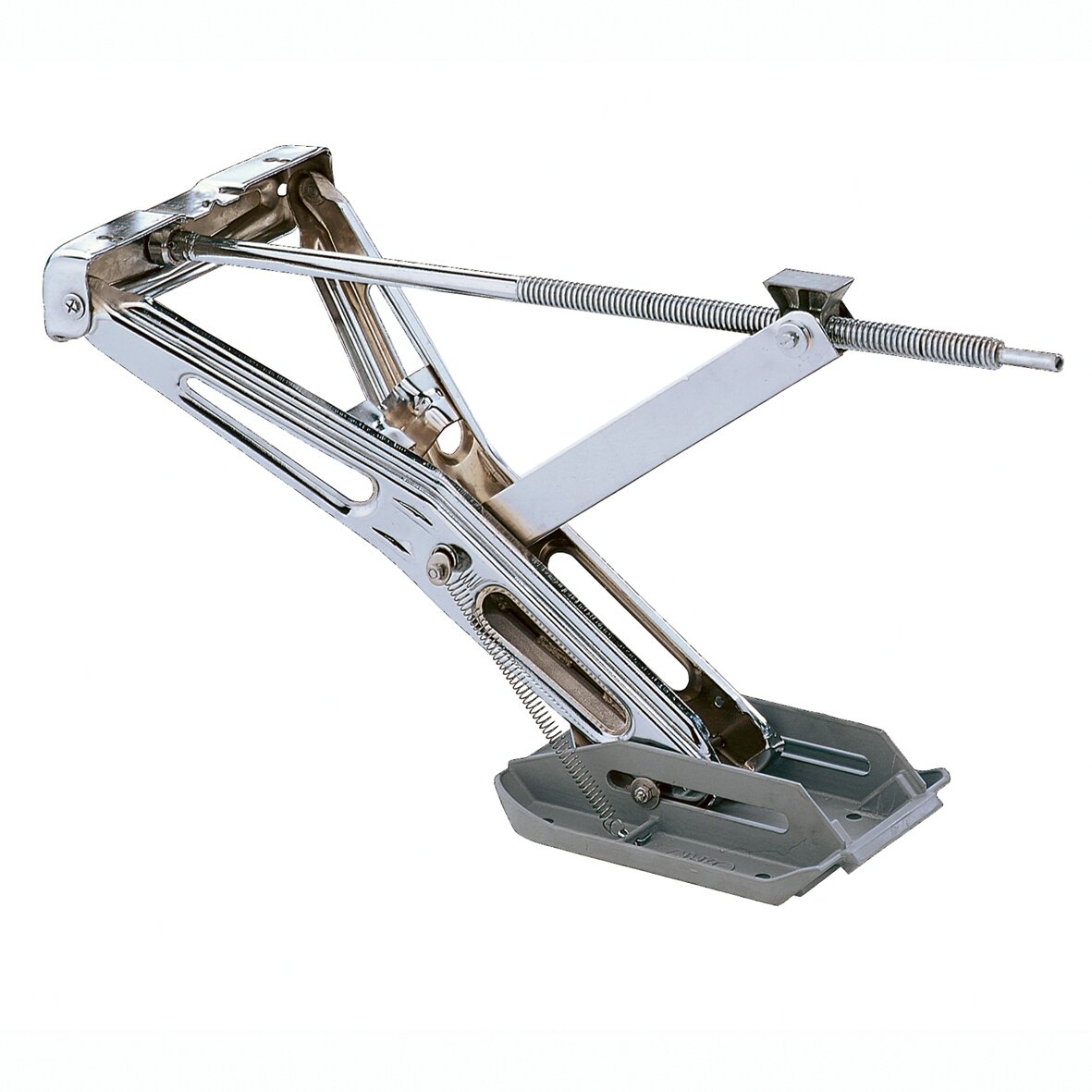

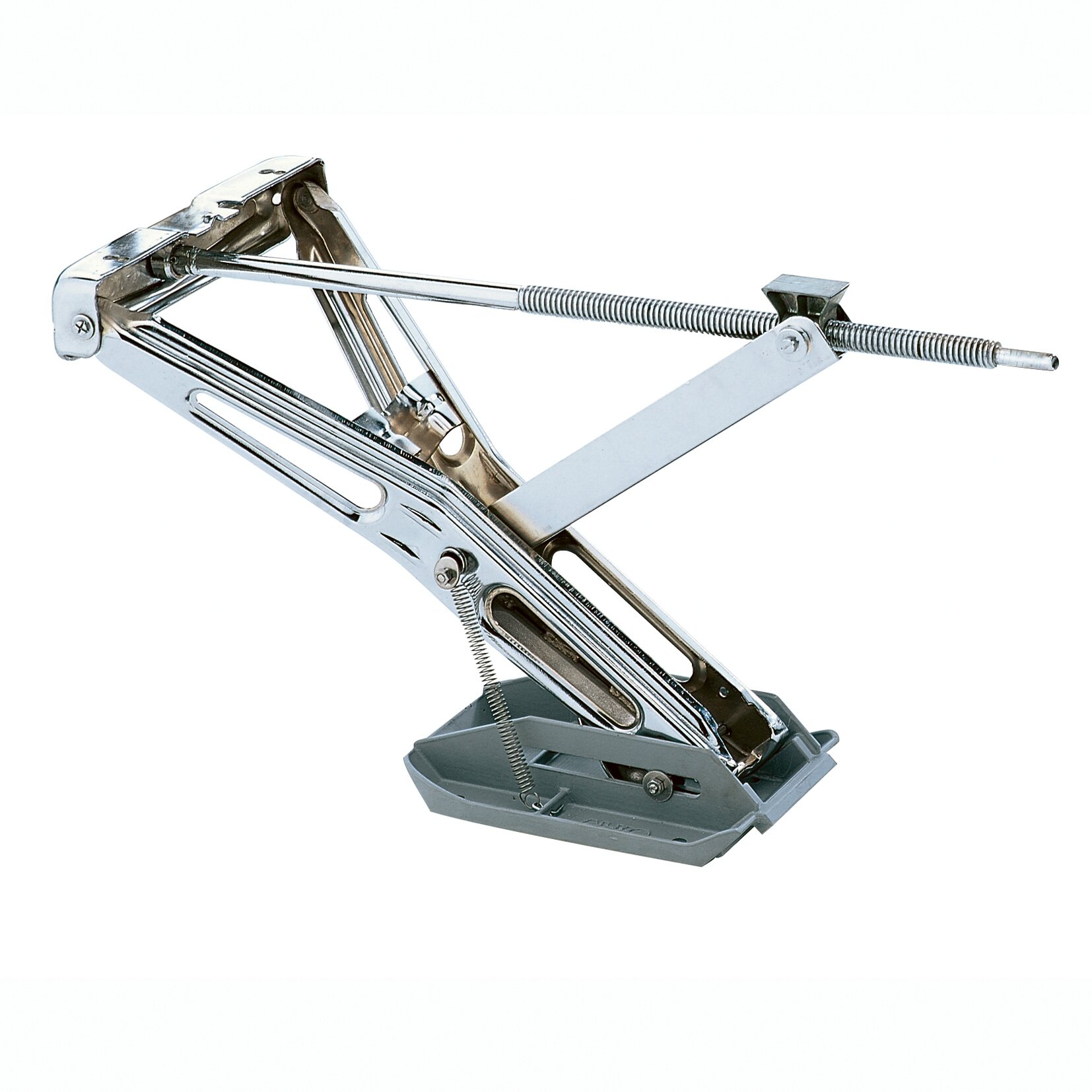

Interlocking attachment via springs of the AL-KO big foot™ to the support when driving.

Functionality

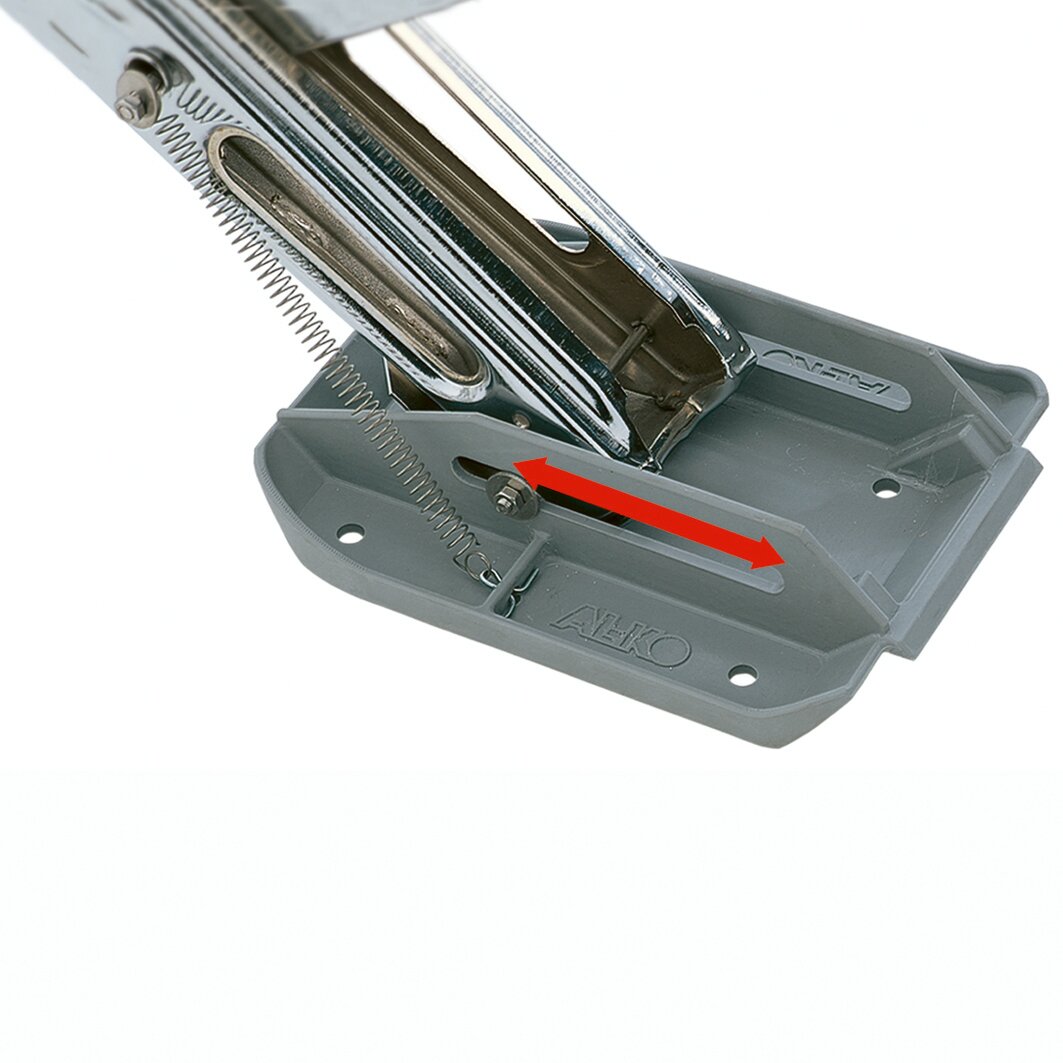

When in contact with the ground, slots guide the support so that it slides directly onto the AL-KO big foot™, i.e. the support does not have to push the AL-KO big foot™.

Installation
Big foot™ can be attached to all AL-KO Stabilform and Premium plug-in supports. From model year 2001, the corresponding mounting holes are already included on the Stabilform supports. Up to model year 2000, the mounting holes have to be drilled in accordance with the operating instructions.

Retrofittable for caravans with AL-KO chassis and Stabilform support.

Scope of delivery

Four AL-KO big foot™ incl. mounting material and instructions.
