Shipman

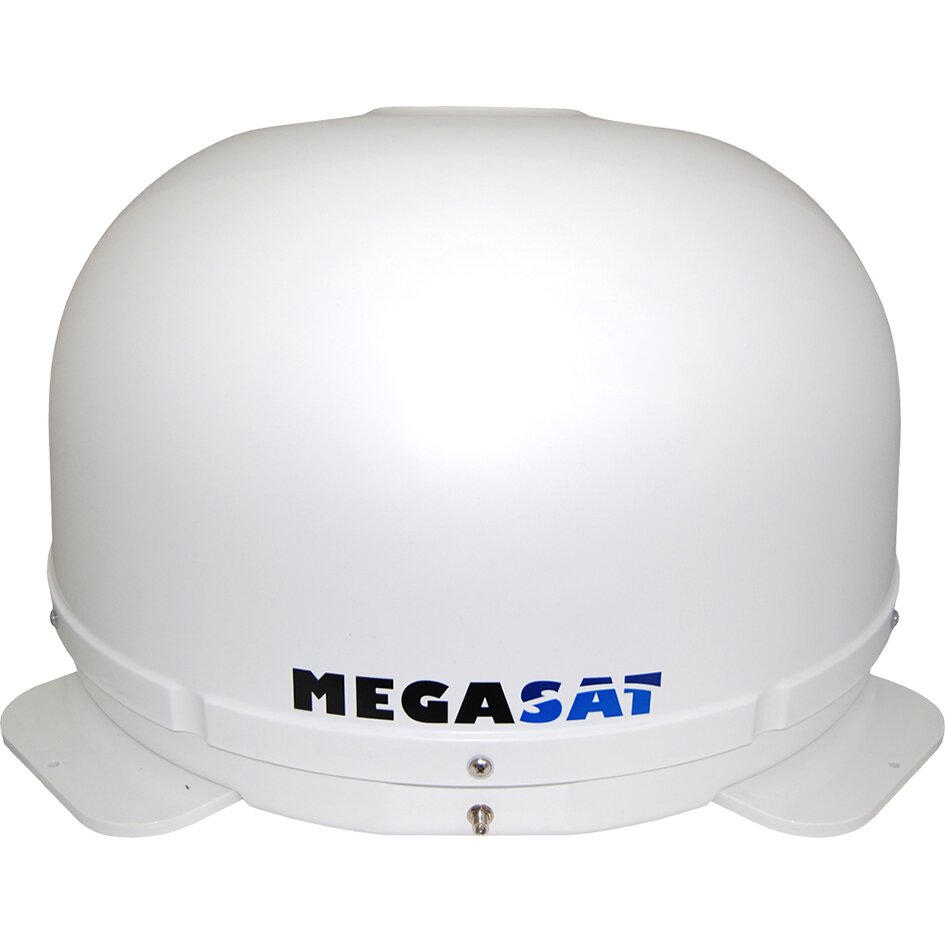

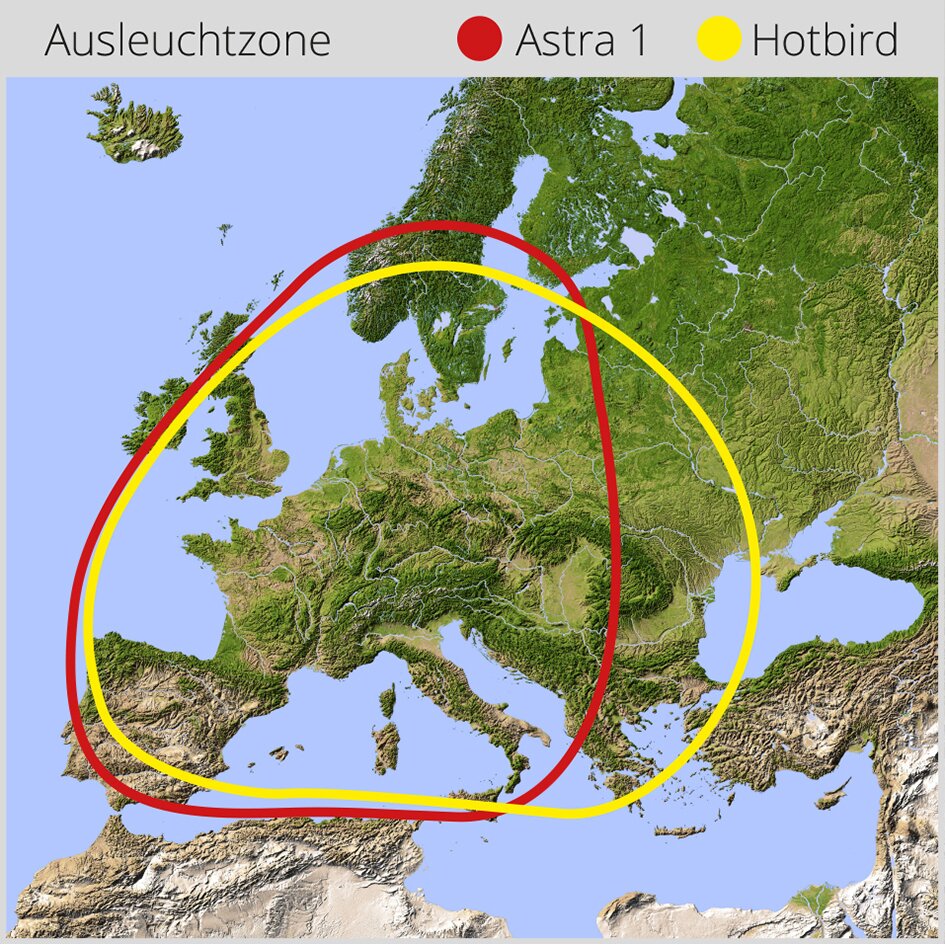

Receiver-independent, fully automatic satellite system that aligns to the selected satellite at the push of a button within 1 – 2 minutes. It is pre-programmed for radio and TV signals via Astra 1, Astra 2, Astra 3, Astra 4, Hotbird, Thor, Hispasat, and Eutelsat 5 W. Its parabolic dish (46 x 32 cm) is optimally protected against external damage by the elegant plastic cover. An SD card reader and an RS-232 interface enable a potentially necessary software update of the control unit. Thanks to the included mounting kit, the exterior unit can be very easily attached to an even surface. With its automatic tracking system, the model Shipman guarantees the best TV reception while driving (up to 160 km/h). Shipman recognises any change of direction, corrects it automatically and thus holds the position of the satellite. Shipman GPS Auto Skew version fully automatically adjusts the LNB to the suitable polarisation and enables the best reception possible all over Europe.
Technical data:

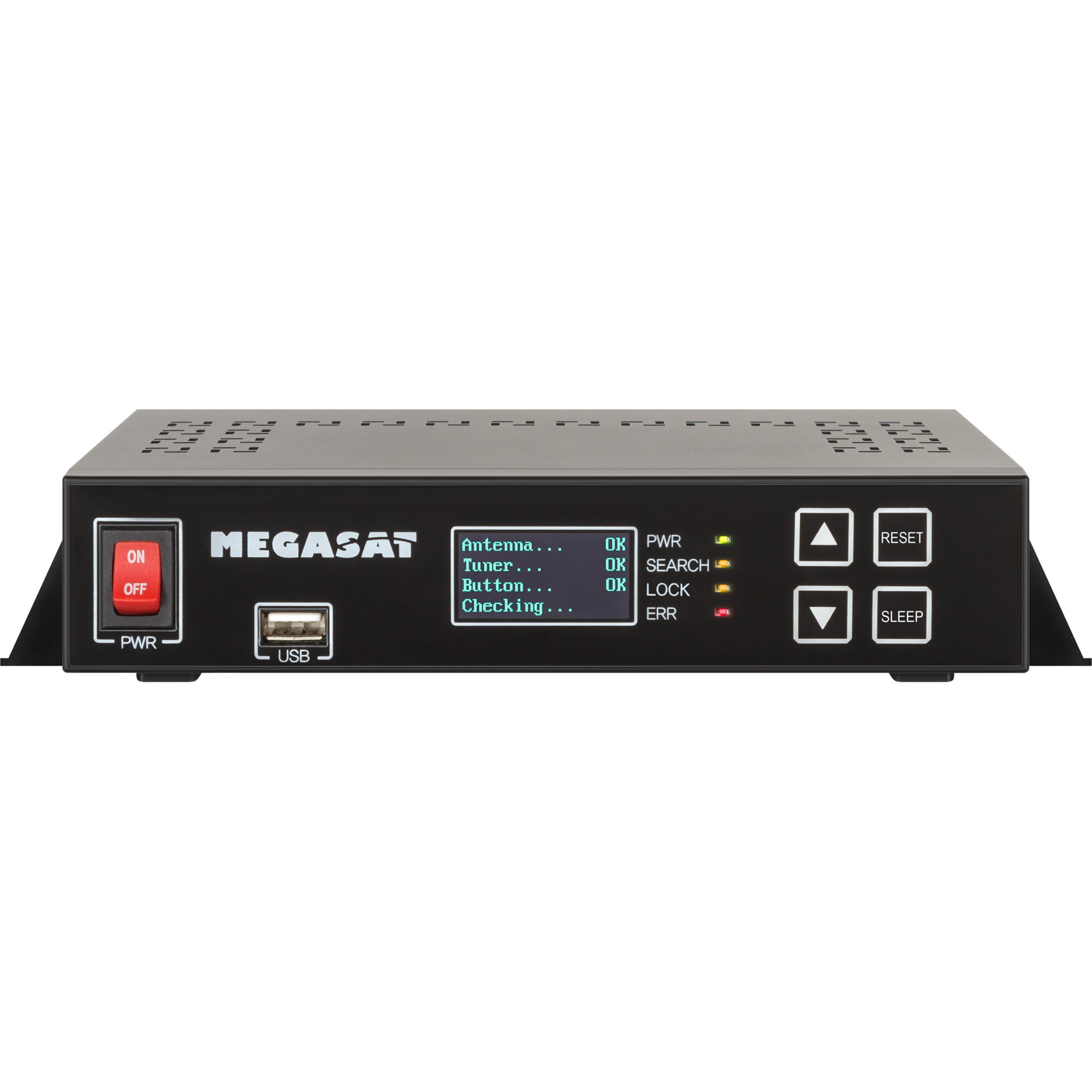

Universal LNB, elevation/inclination angle 15° – 62°, azimuth/search angle 360°, power supply 12 V, power consumption while searching max. 33 W, operating temperature -25 °C – +70 °C, dimensions exterior unit ø 67 x H 40 cm, weight exterior unit 9 kg, dimensions control unit W 20 x H 4.5 x D 13.4 cm, weight 617 g.
Scope of delivery:
Exterior unit with connection cable (length 10 m), connection cable between control unit and receiver (length 1 m), control unit, adhesive set for installation on smooth surfaces.
