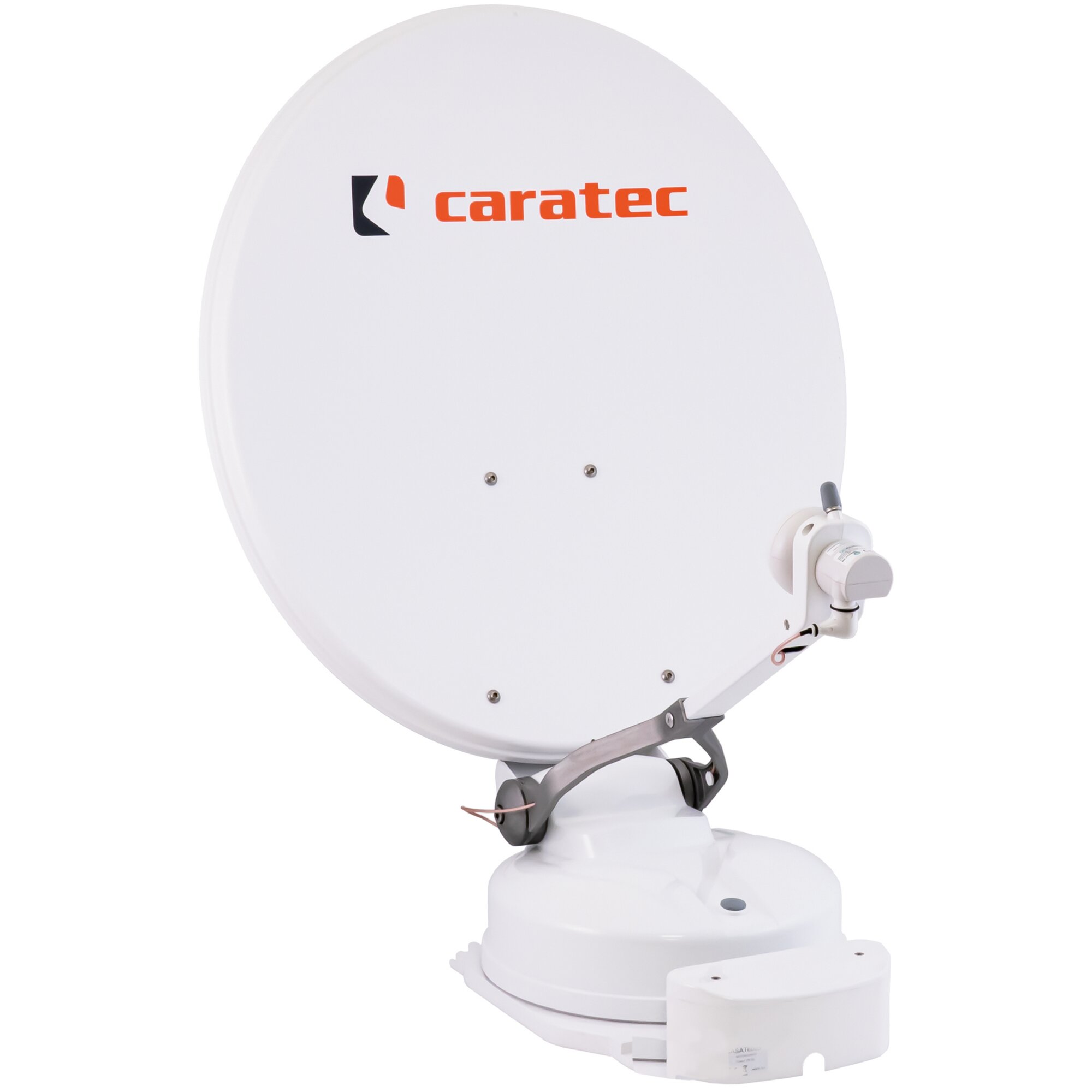

Satellite System CASAT 500 And 600, CASAT 500D, 50 cm

All Caratec satellite antennas of this series receive signals from Astra 1 and Hotbird at the push of a button (Dual Sat). With the CASAT-102M control panel, the reception up to 12 satellites is possible. The CASAT 500 series is the perfect solution for vehicles with little space on the roof, such as vans. All CASAT versions are quick and easy to install – just only a single cable needs to be routed inside the vehicle.

If the controller needs to be installed in a hard-to-reach place, the optional on/off switch can be used to extend and retract the antenna.

Technical data:

• Safety circuit and automatic closing when the engine is started
• Updates via microSD card
• Elevation/inclination angle 15° – 75°
• Rotation angle 400°
• Frequency range 10.7 – 12.75 GHz
• Suitable for DVB-S SD and HD
• Operating temperature -15 °C – +45 °C
• Power supply 11 – 14 V
• Retrofittable for twin operation (item no. 71 105)
• Low mounting height 16 cm

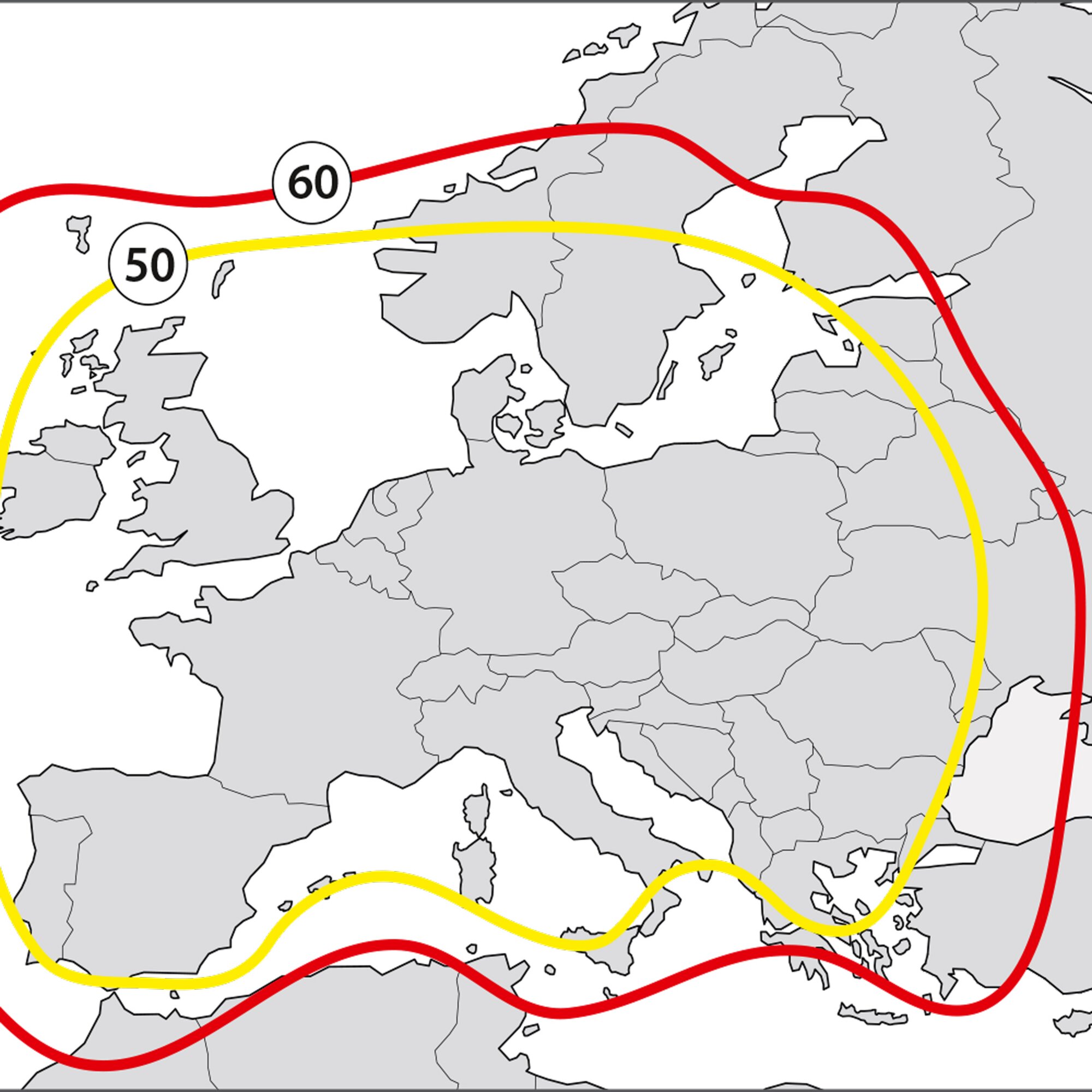

• CASAT 500D
  Dish size 50 cm, dimensions L 63 x W 50 x H 16 cm, weight 7.8 kg
• CASAT 600D
  Dish size 60 cm, dimensions L 73 x W 60 x H 16 cm, weight 8.2 kg

Scope of delivery:

• Exterior unit with detachable connection cable (3.5 m), and roof cable routing
• Dish made of aluminium with UV-resistant powder coating (pre-installed for all), and control unit with operating buttons
